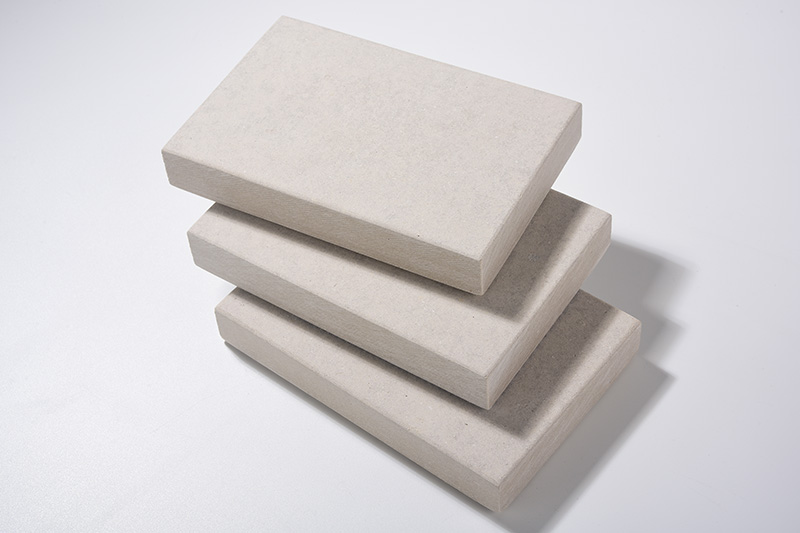

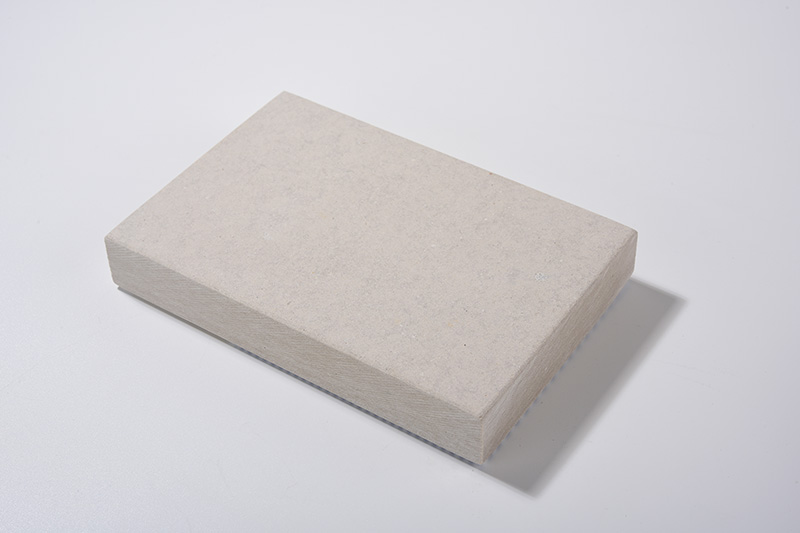

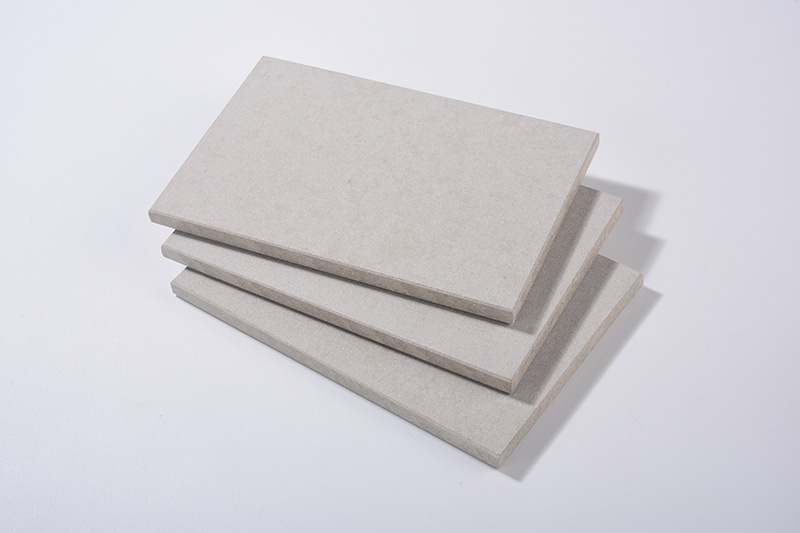

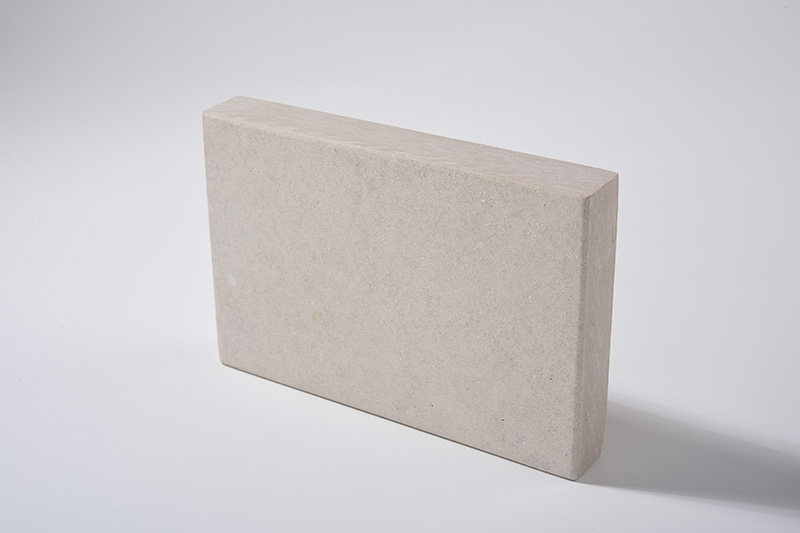

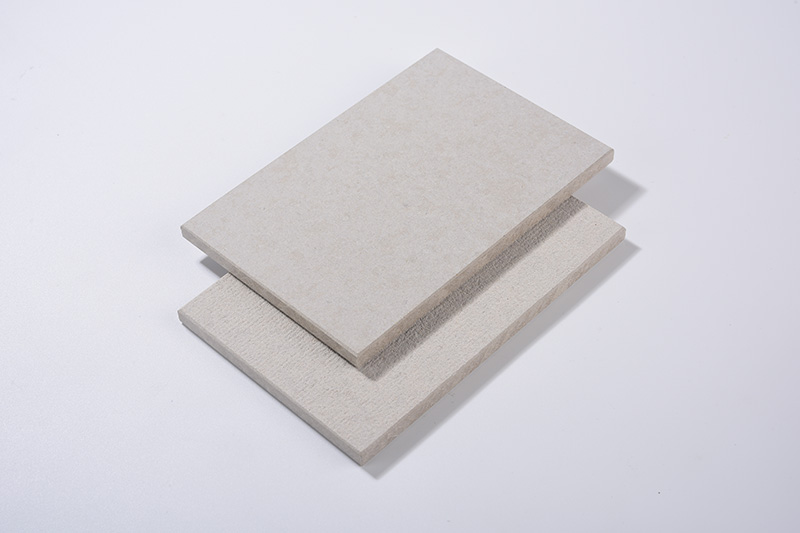

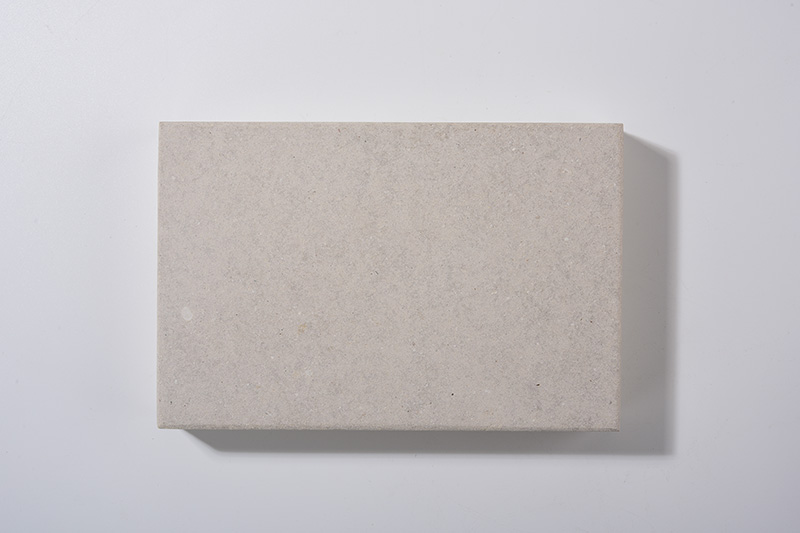

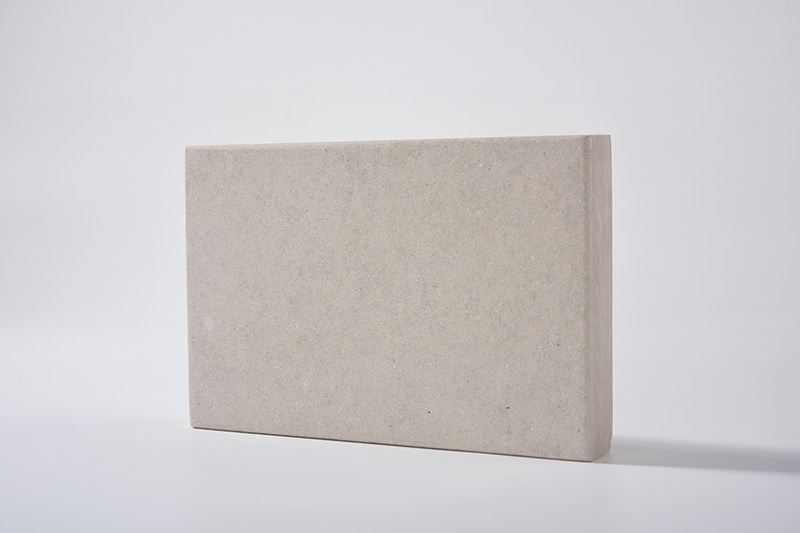

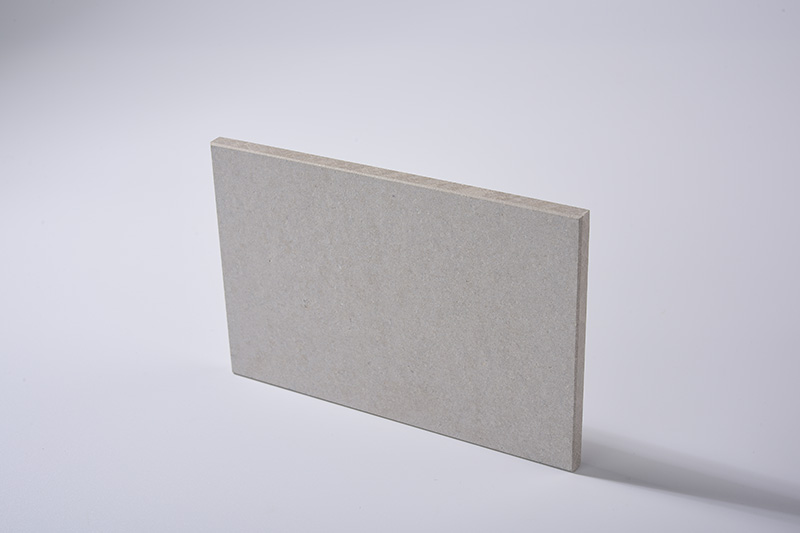

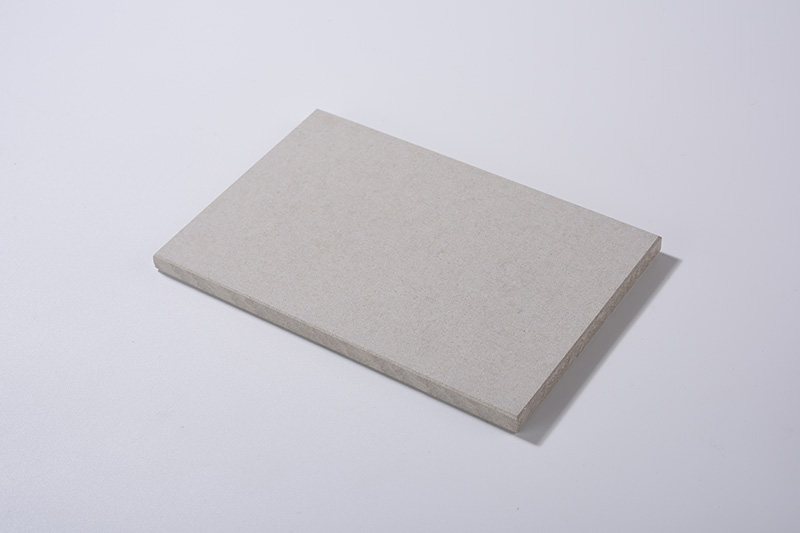

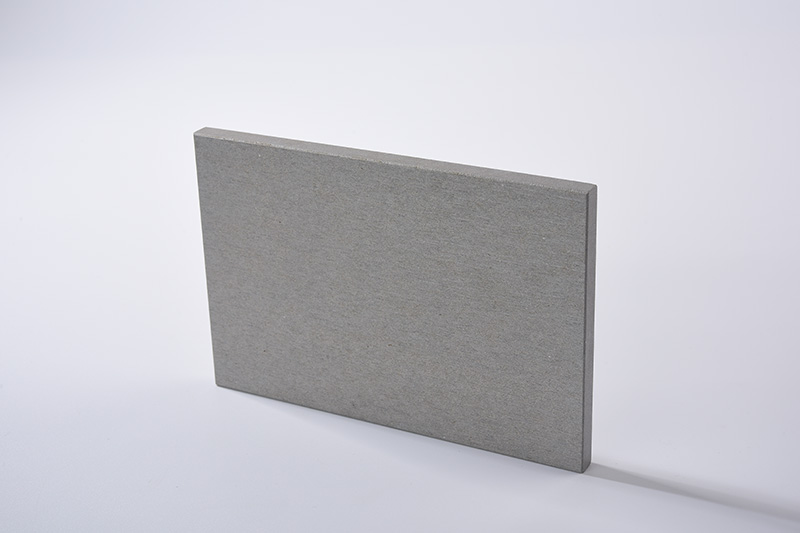

KingTecPan is non–asbestos energy–saving light weight building board with tobermorite crystal structure, which is famous for its high stability. It is formed under the internationalleading ktn300 technology by high–temperature autoclave curing treatment. It has different density range: low density (KingTec KT–L Panel), medium density (KingTec KT Panel), high density (KingTec KT–W Panel) for your choice.

1. standard specification mm: 2440x1220x (6 ~ 30)

2. Density g/cm:

KingTec KT-L Panel ≤1.10

KingTec KT-M Panel1.1＜D≤1.4

KingTec KT-W Panel＞1.40

3. Thermal conductivity W/(m.k):

KingTec KT-L Panel ≤0.20

KingTec KT-M Panel ≤0.25

KingTec KT-W Panel ≤0.30

4. Moisture content%: ≤10

5. Wet expansion rate%: ≤0.25

6. Bending strength MPa (dry):

KingTec KT-L Panel ≥6

KingTec KT-M Panel ≥8

KingTec KT-W Panel ≥10

7. Frost resistance: 25 freeze-thaw cycles without cracking and delamination.

8. Impermeability: No water drops are found after 24h inspection.

9. Asbestos content: It conforms to the standard of HJ/T223-2005 and does not contain asbestos.

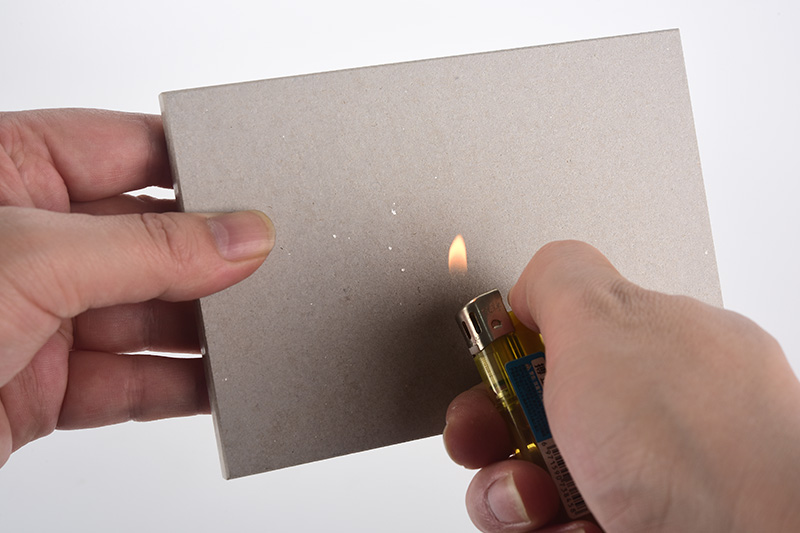

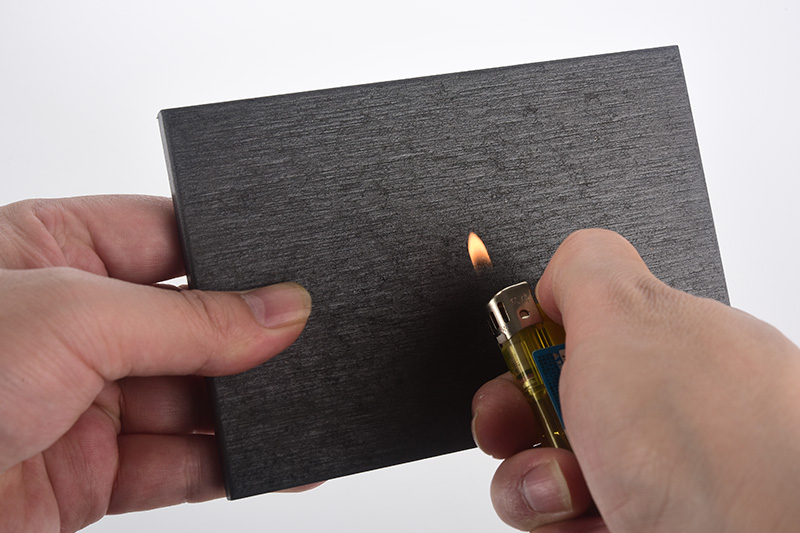

10. Combustion performance grade: it conforms to the incombustibility of GB8624-2012, and the index is A1 grade.

11. Radioactivity:

Meet the standard of GB6566-2010 and meet the requirements of Class A decorative materials.

Internal exposure index IRa≤0.20

External irradiation index Ir≤0.25

Class A decorative materials, production, marketing and scope of application are not restricted.

KingTecPan is non–asbestos energy–saving light weight building board with tobermorite crystal structure, which is famous for its high stability. It is formed under the internationalleading ktn300 technology by high–temperature autoclave curing treatment. It has different density range: low density (KingTec KT–L Panel), medium density (KingTec KT Panel), high density (KingTec KT–W Panel) for your choice.

1. standard specification mm: 2440x1220x (6 ~ 30)

2. Density g/cm:

KingTec KT-L Panel ≤1.10

KingTec KT-M Panel1.1＜D≤1.4

KingTec KT-W Panel＞1.40

3. Thermal conductivity W/(m.k):

KingTec KT-L Panel ≤0.20

KingTec KT-M Panel ≤0.25

KingTec KT-W Panel ≤0.30

4. Moisture content%: ≤10

5. Wet expansion rate%: ≤0.25

6. Bending strength MPa (dry):

KingTec KT-L Panel ≥6

KingTec KT-M Panel ≥8

KingTec KT-W Panel ≥10

7. Frost resistance: 25 freeze-thaw cycles without cracking and delamination.

8. Impermeability: No water drops are found after 24h inspection.

9. Asbestos content: It conforms to the standard of HJ/T223-2005 and does not contain asbestos.

10. Combustion performance grade: it conforms to the incombustibility of GB8624-2012, and the index is A1 grade.

11. Radioactivity:

Meet the standard of GB6566-2010 and meet the requirements of Class A decorative materials.

Internal exposure index IRa≤0.20

External irradiation index Ir≤0.25

Class A decorative materials, production, marketing and scope of application are not restricted.

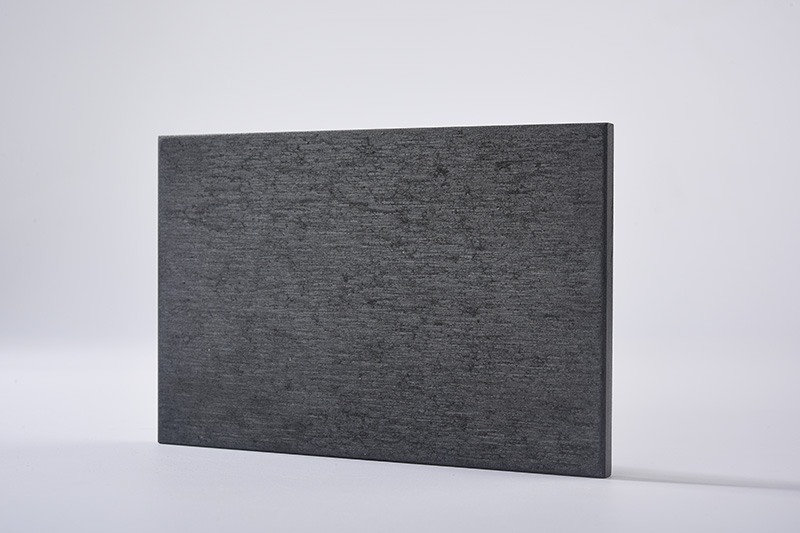

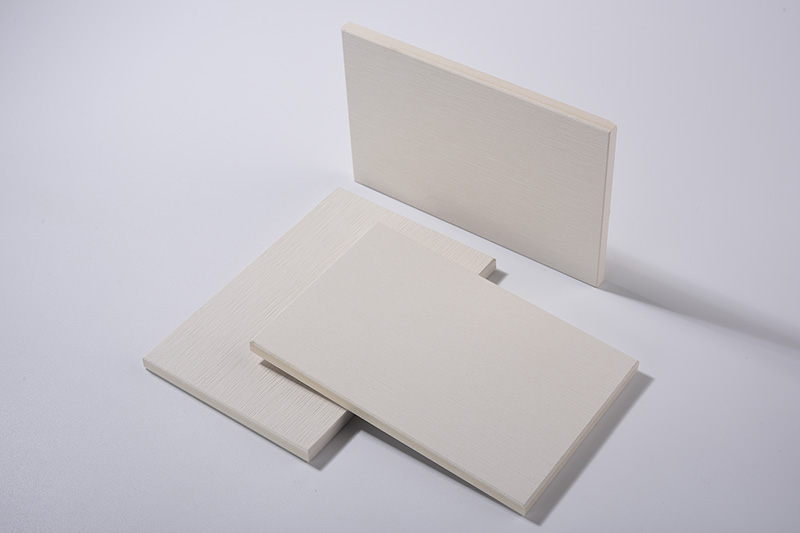

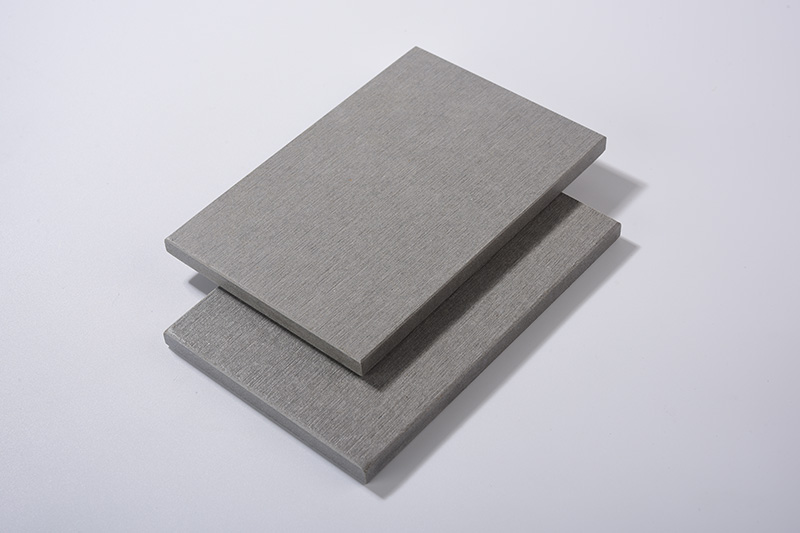

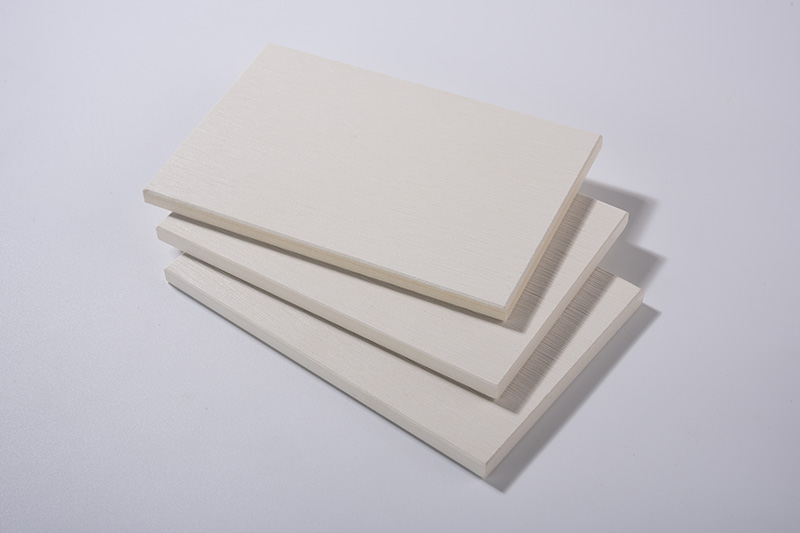

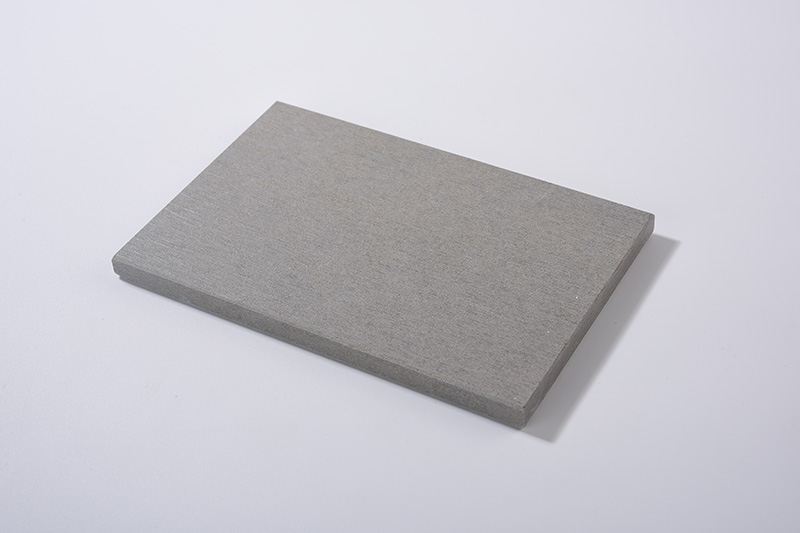

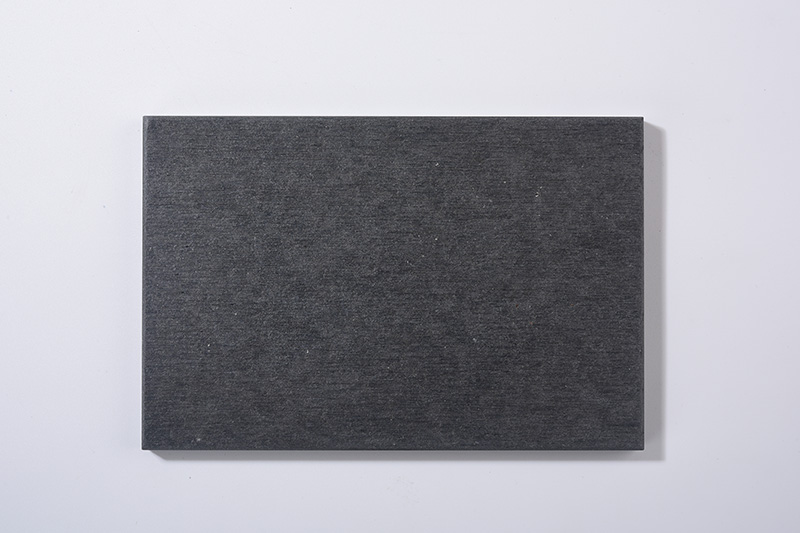

Gadis Fiber Cement Cladding Board is a new type of green environmental fire protection board developed by KingTec, which does not contain asbestos or other harmfulsubstances. The color of the board is uniform, simple and steady, natural and generous. It maintains its natural texture and color, reflecting its high–grade quality of home decoration and no carving.

1.Standard Size mm:2440 X 1220 X (9、12)

2.Density g/cm³:1.45±0.1

3.Density g/cm³:≤10

4.Bulking Rate %:≤0.25

5.Thermal Conductivity W/(m.k):≤ 0.35

6.Frost Resistance:100 freeze-thaw cycles, no cracking, no delamination, no shedding

7.Water Impermeability:No water drop detected by 24hrs

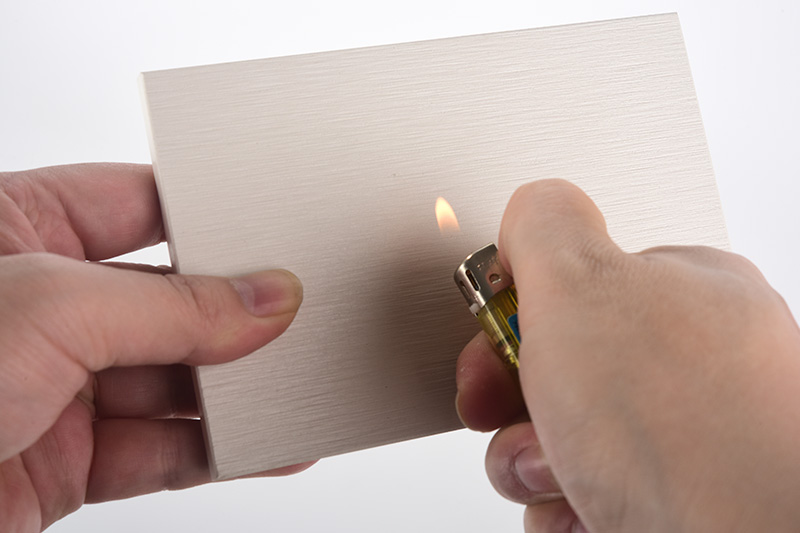

8.Non combustibility:Comply with GB8624-2012, A1 non-combustible material

9.Radioactivity:Internal Exposure Index IRa≤0.20; External Exposure Index Ir≤0.25

Grade A decoration materials, unlimited production, marketing and application range.

10.Asbestos Content:Comply with HJ/T223-2005 Standard, asbestos free

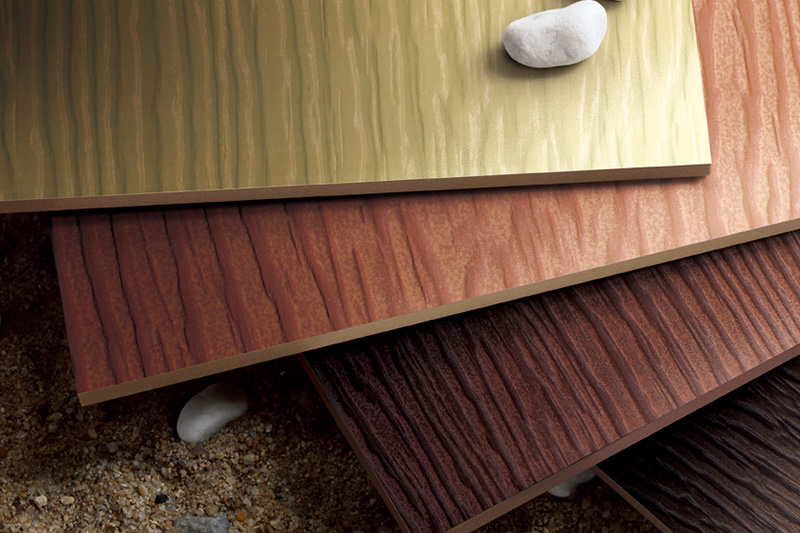

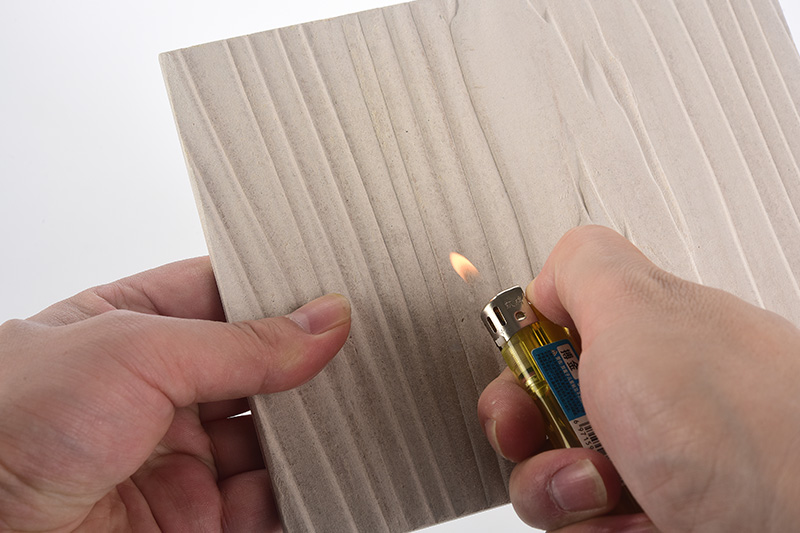

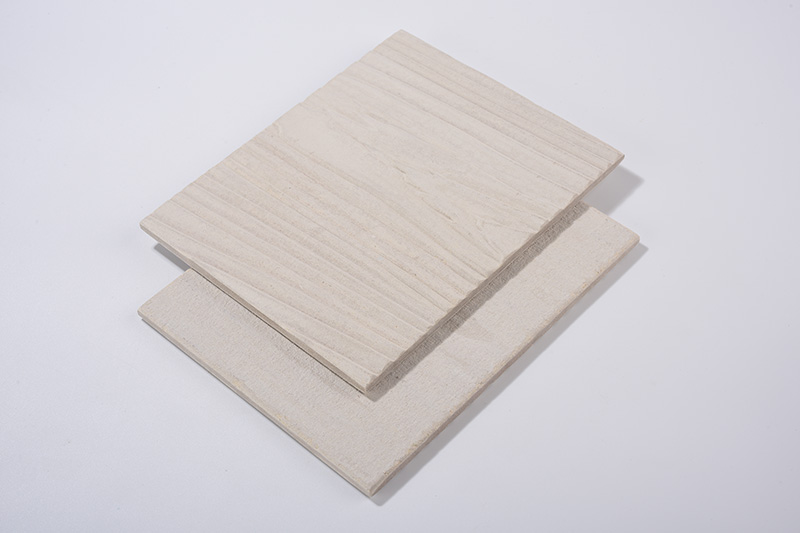

Gadis Fiber Cement Siding Board is a kind of fiber–reinforced cement board, which is made of Portland cement, quartz powder, many other mineral materials and naturalplant fiber. It was treated by high temperature autoclave curing. After special treatment,it has the effect of natural real wood grain.

1.Standard Size mm:190 X 3000 X (7.5 / 8/9)

2.Density g/cm³: > 1.4

3.Thermal conductivity W/（m.k）:≤0.20

4.Water absorption %:≤35

5.Bulking Rate %:≤0.20

6.Water impermeability:No water drop at the bottom

7.Frost-resistant:No cracking or peeling

8.incombustibili:GB 8624Class A1

9.Bending strength (Dry):≥10

10.Bending strength (Water saturated):≥7

11.Radioactivity:Internal Exposure Index IRa≤0.20; External Exposure Index Ir≤0.25

Grade A decoration materials, unlimited production, marketing and

application range.

12.Mould Resistance:Comply with HG/T3950-2007, Grade 0

13.Asbestos Content:Comply with HJ/T223-2005 Standard, asbestos free

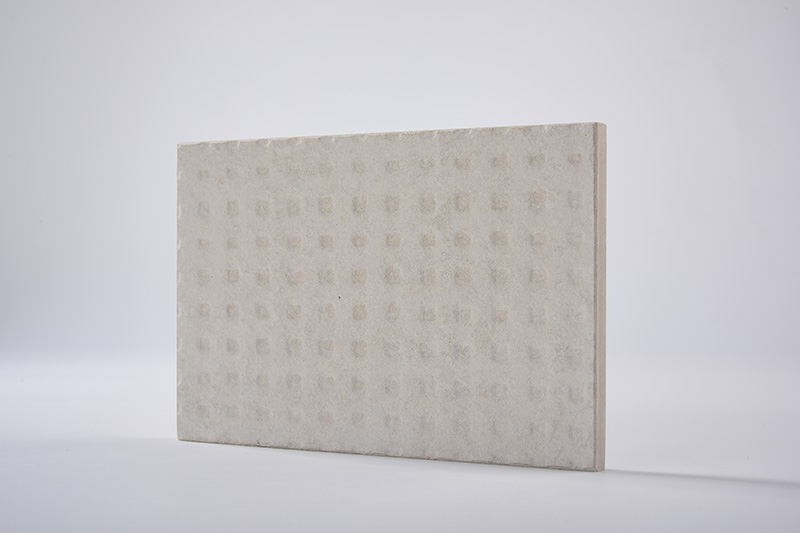

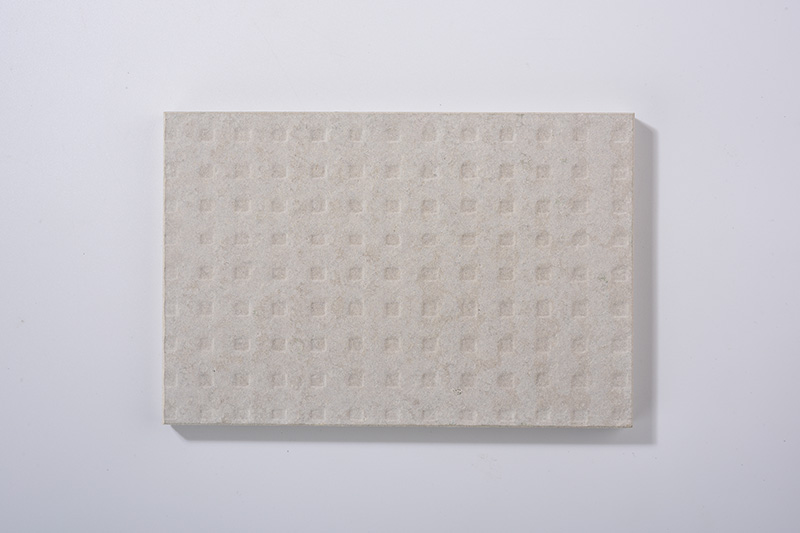

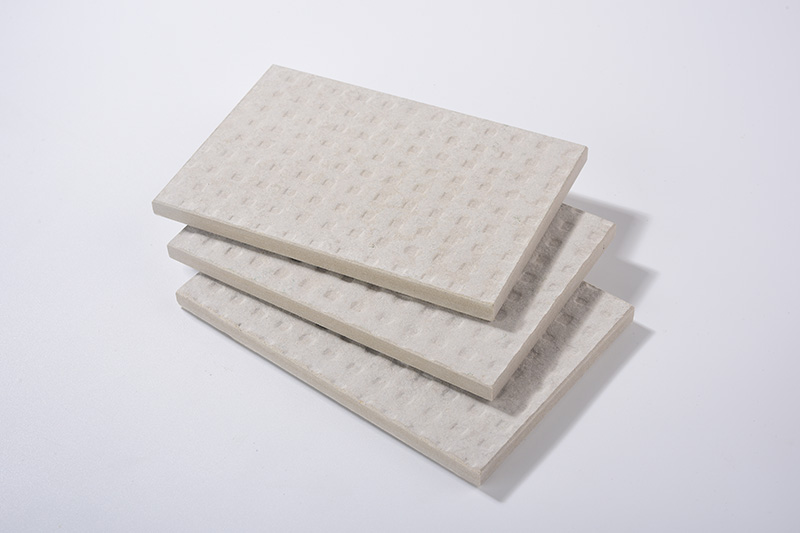

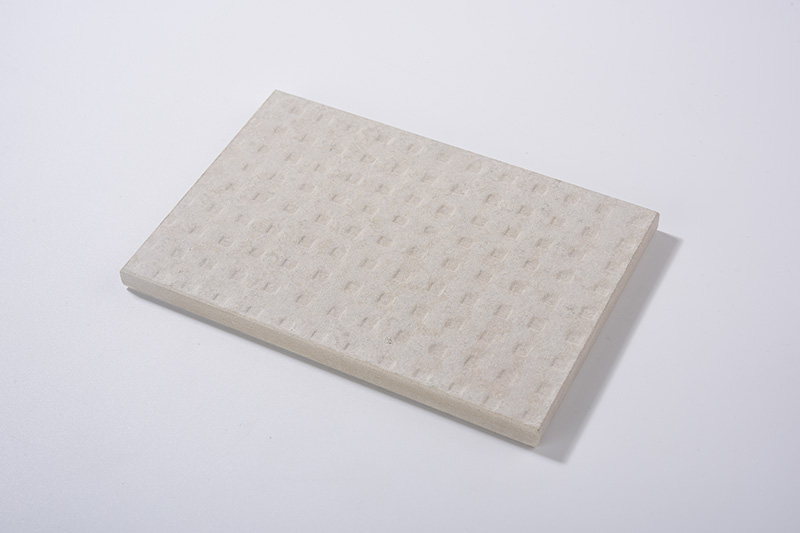

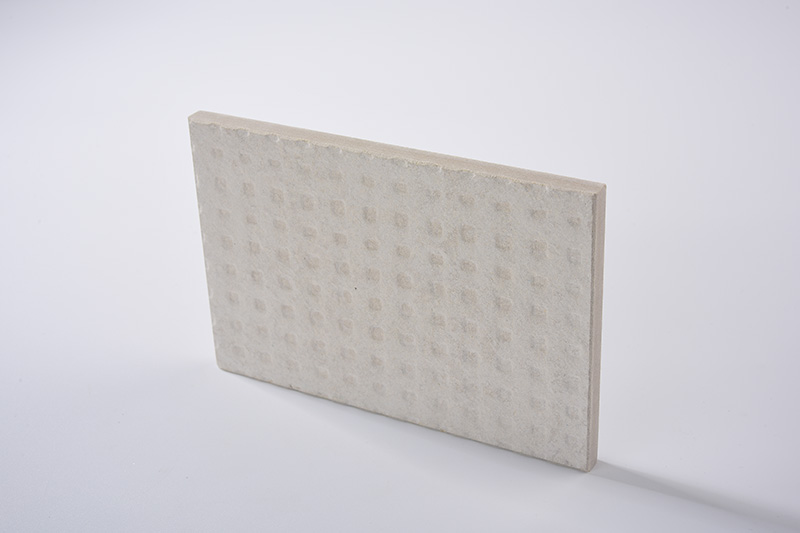

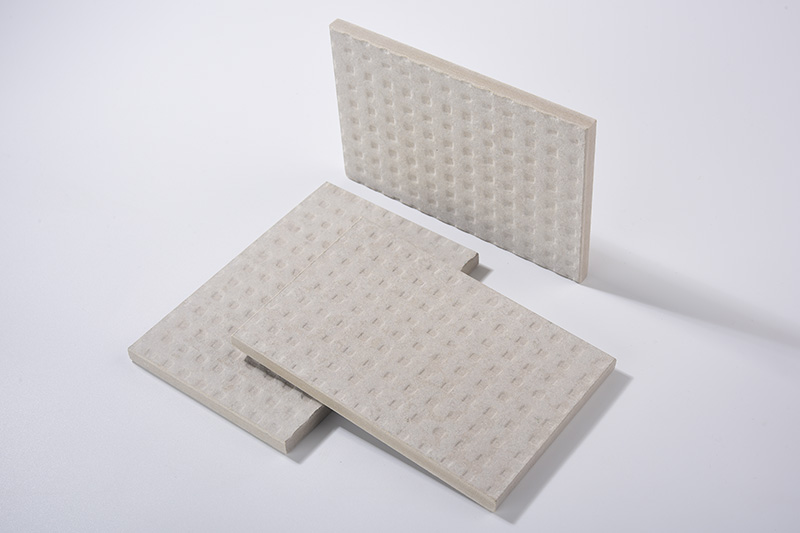

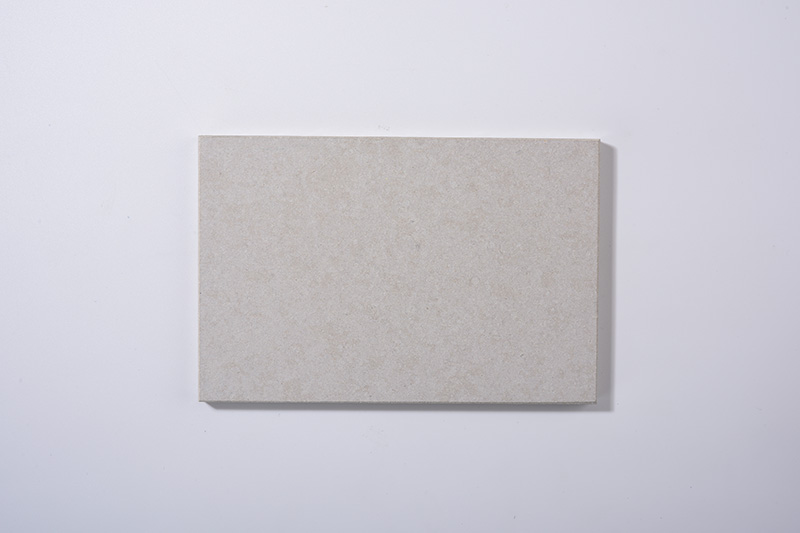

Jinte porcelain board is a kind of fiber reinforced cement board with high strength, durability and moisture resistance and unique embossing on the surface, which is based on Jinte fiber reinforced cement board and cured by autoclaving at high temperature and high pressure.

1. standard specification mm: 1220x2440x (8, 9, 12)

2. Density g/cm: ≥ 1.20

3. Thermal conductivity w/(m.k): ≤ 0.25

4. Water absorption%: ≤ 35

5. Wet expansion rate%: ≤ 0.20

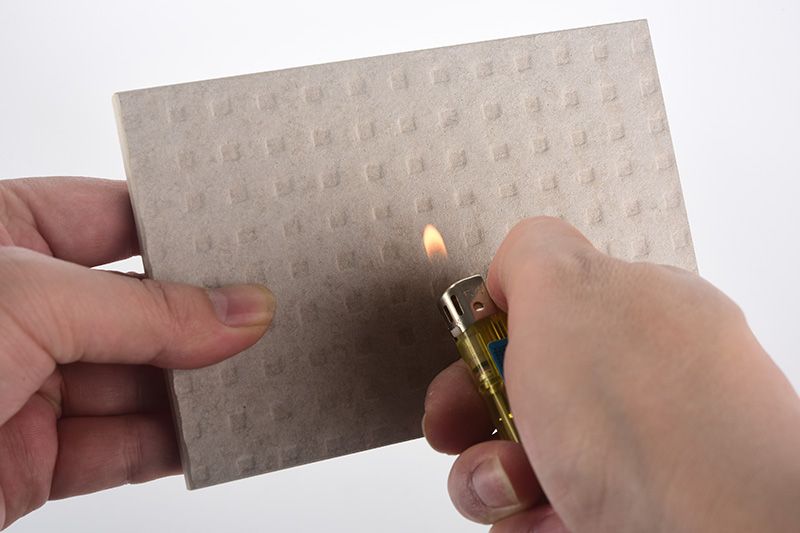

6. Combustion performance grade: A1 incombustible.

7. Watertightness: 24 hours inspection, no water drops.

8. Frost resistance: 25 freeze-thaw cycles without cracking and delamination.

9. Bending strength MPa (air-dried): ≥10

10. Bending strength MPa (saturated with water): ≥7

11. Radioactivity:

Meet the standard of GB6566-2010 and meet the requirements of Class A decorative materials.

Internal exposure index IRa≤1.0

External irradiation index Ir≤1.0

Class A decorative materials, production, marketing and scope of application are not restricted.

12. Anti-mildew and anti-bacteria performance: it meets the requirements of HG/T3950-2007, with grade 0.

13. Asbestos content: no asbestos.
