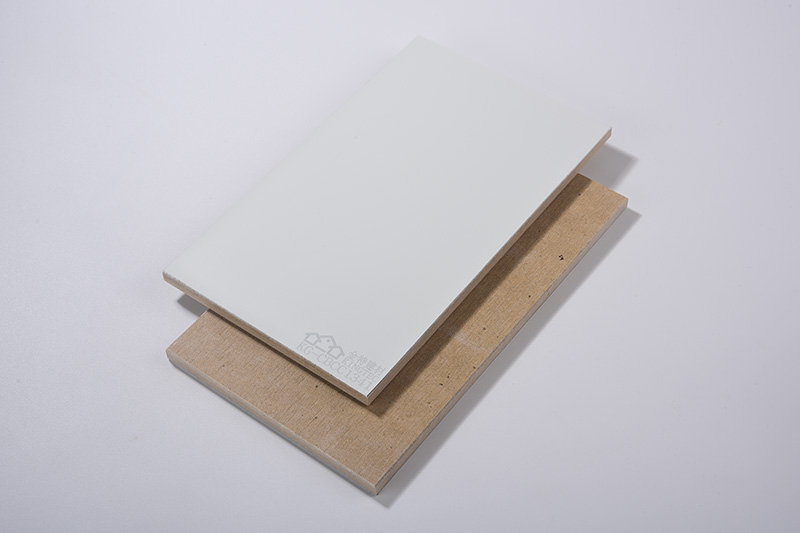

Decorative fireproof and Explosion-proof Board
Hawk-B Anti-explosion Board
Made from environmentally friendly materials, using fiber cement flat panels as the substrate, it is then combined with 0.5~0.8mm galvanized steel plates through advanced processes such as light pressing and curing. Additionally, a multi-layer inorganic coating with extremely strong weather resistance and highly stable color is baked onto the surface of the galvanizedsteel/aluminumplate, creating a new type of material.
1.Standard Size mm：2440 (3000) X 1220 X (6~15)
2.Density kg/m³：1.6＜D≤1.7
3.Moisture Expansion Rate %:≤0.25
4.Water Absorption Rate %:≤12
5.Flexural Strength (Air-Dried) Mpa:≥24
6.Flexural Strength (Water-Saturated) Mpa:≥22
7.Frost Resistance:Withstands 25 freeze-thaw cycles without cracking,delaminating, or crazing.

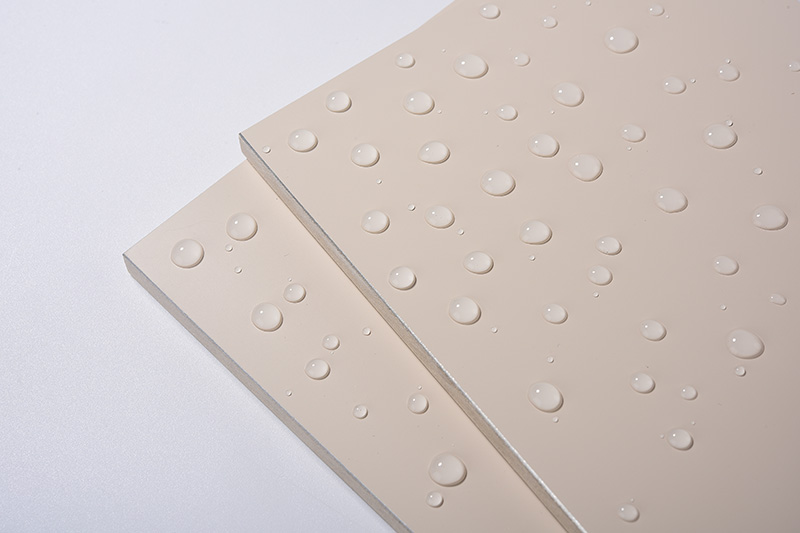

8.Impermeable to Water:After 24 hours of testing, no wet marks or water droplets appear on the reverse side
9.Resistance to Corrosion L/um:≥1.5
10.Gloss Deviation:≤10
11.Coating Adhesion:Grade 0
12.Wind Resistance Kpa:Positive Wind Pressure P3≥5.0; Negative Wind Pressure P3≤-5.0
13.Coating Solvent Resistance:200 times, no exposure of the substrate.
HAWK-B anti-explosion board is a kind of high-strength composite anti-explosion material. The core layer is asbestos-free cement flat plate, and the cladding layer is two high-strength punched galvanized steel plates, and the inner and outer layers are engaged by mechanical pressure. It has the functions of super fire prevention, explosion prevention, impact resistance and high water pressure jet resistance.
Standard specification mm: 2400 x 1200 x 9.5
Area density kg/m: ≤ 25
Moisture content%: ≤ 10
Thermal conductivity w/(m.k): ≤ 0.20
Bending strength MPa: ≥ 185 is tested according to standard GB/T 7019.
The elastic modulus GPA: ≥ 72 is tested according to the standard GB/T 17657.
Acid and alkali resistance: ≥360h, no bubbling, bulging and pulverization after the experiment.
Asbestos content: it meets the standard of HJ/T223-2005, and does not contain asbestos.
Radioactivity: it conforms to GB6566-2010 standard and meets the requirements of Class A decorative materials.

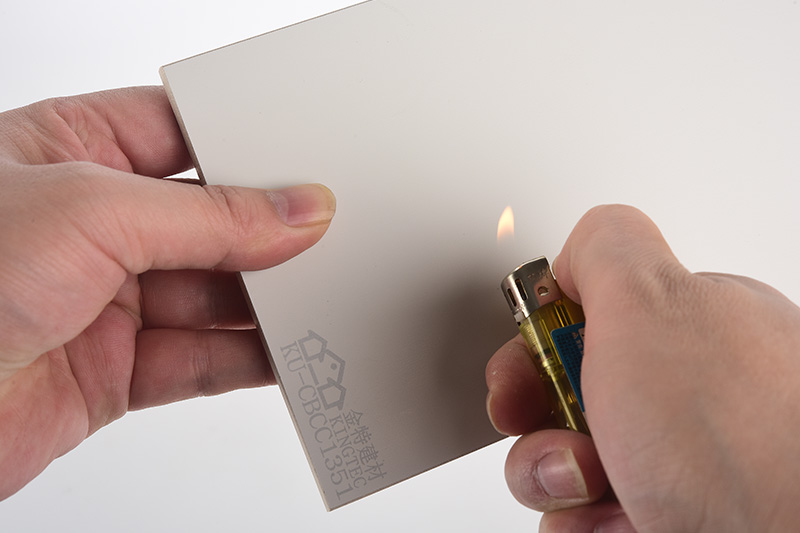

Incombustibility: incombustible material conforming to grade A1 of GB 8624-2012.
